FILTRATION

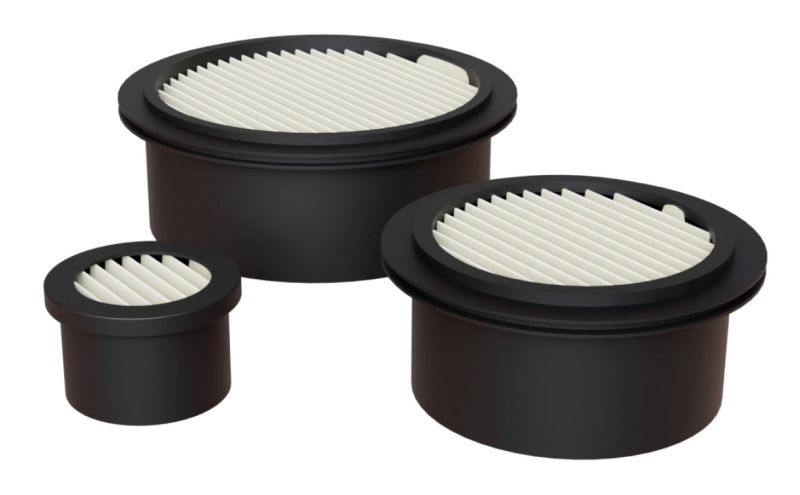

Replacement Elements - Hockey Puck
Small FS/PS 5 - 425 m³/hr Flow Range
Features
- High grade filter element
- Element construction of injection molded thermoplastic
- Integrated gasket seal
- - Positive seal between housing hemispheres
- - New seal with each element
- - Minimizes parts
- Optimal surface area per given size
- Pleated media for high dirt holding capacity
Technical Specifications
- Polyester: 99+% removal efficiency standard to 10 micron
- Paper: 99+% removal efficiency standard to 2 micron
- Temp (continuous): min -26°C (-15°F) max 104°C (220°F)
- Filter change out differential: 37-50 mbar over initial ΔP
Polyester Media Benefits/Specs
- Less maintenance due to longer durability
- Moisture resistant
- Handles hot air and oil mist from unload cycle of reciprocating/piston compressor
- Washable with lukewarm water and mild detergent (replacing element is recommended)
Paper Media Benefits/Specs
- Heavy duty industrial strength paper
- Cost effective
- Gently blow out media (replacing element is recommended)
SS ISO Flange w/Black Filter Assembly Finish

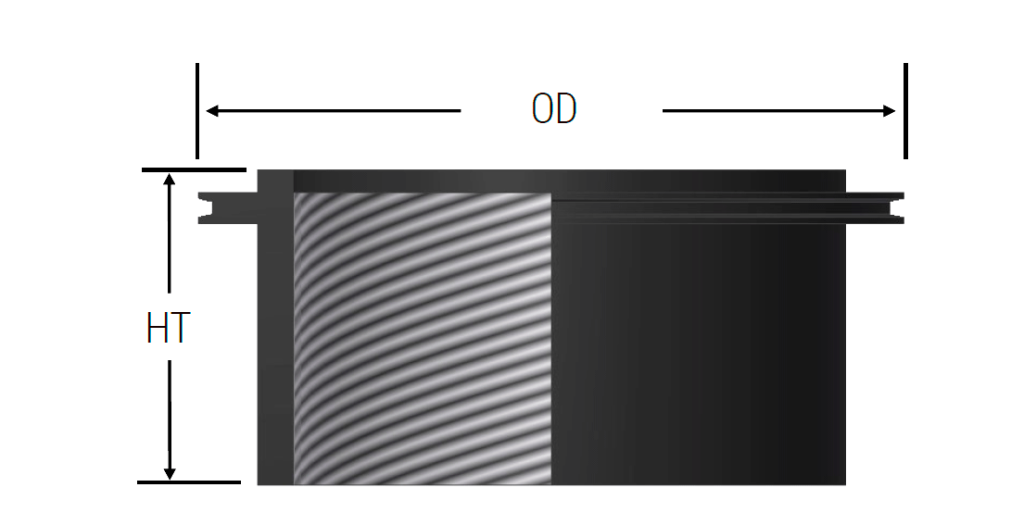

| Element Part Number | Element m³/hr Rating | Surface Area (m²) | Dimensions (mm) | ||
|---|---|---|---|---|---|
| Polyester | Paper | O.D. | H.T. | ||
| 03™ | 02™ | 5 | 0.009 | 40 | 25 |
| 05™ | 04™ | 14 | 0.019 | 60 | 25 |
| 07™ | 06™ | 20 | 0.054 | 78 | 35 |
| 11™ | 10™ | 60 | 0.10 | 102 | 37 |
| 17* | 16™ | 425 | 0.74 | 191 | 83 |
*Minimum order quantity applies.
